10m Alignment Measuring Facility

The alignment measuring facility is used to measure the dimensions of a test item, or the mounting positions and angles of all the sensors and antennas on it.
In angle measurement, the mounting directions and angles of sensors and actuators, etc., which require orientation accuracy can be measured with high precision.
In positioning, meanwhile, the coordinates of an actuator, which is supposed to be at a specific distance from the CG, or of outermost or protruding parts whose clearance from the inner surface of a launch vehicle fairing is critical, are precisely measured.
Furthermore, a working platform and a tooling bar in the facility allow angle measurements and positioning to the height of 10 m, which enables alignment measurements on small to large spacecraft.

System Architecture

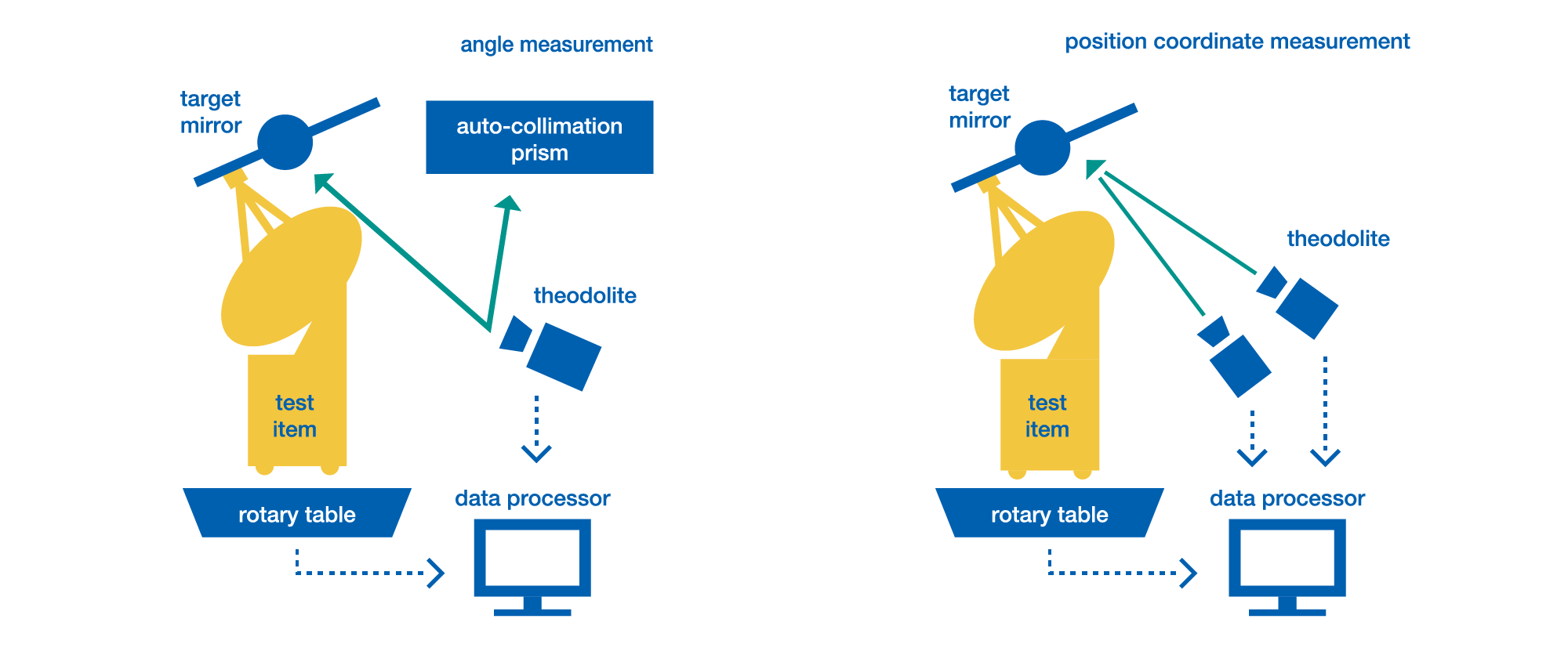

10m Alignment Measuring Facility System Architecture

Specification

optical alignment measuring device distance accuracy ±0.5 mm or less
angle accuracy ±20 sec or less
portable high-precision measuring device
(for three-dimensional coordinate measurement)		 positioning accuracy 0.5 sec (standard deviation)
vertical and horizontal measurement range collimatable range to the target
rotary table diameter 2,000 mmφ
max load capacity 5,000 kg

Actual Applications

SELENE, GCOM-W, GOSAT, ASTRO-H, etc.

PUBLIC APPLICATIONS: small satellites developed by private companies, etc.
